Fluidics Spill-Back Nozzles

Engineered Precision for Industrial Oil Burner Applications

Fluidics Spill Back Nozzles are engineered for high-performance industrial oil burner applications where precise fuel control and efficient combustion are critical. Designed with an adjustable spill-back feature, these nozzles allow operators to vary fuel output without changing the spray pattern, ensuring consistent atomization and flame stability.

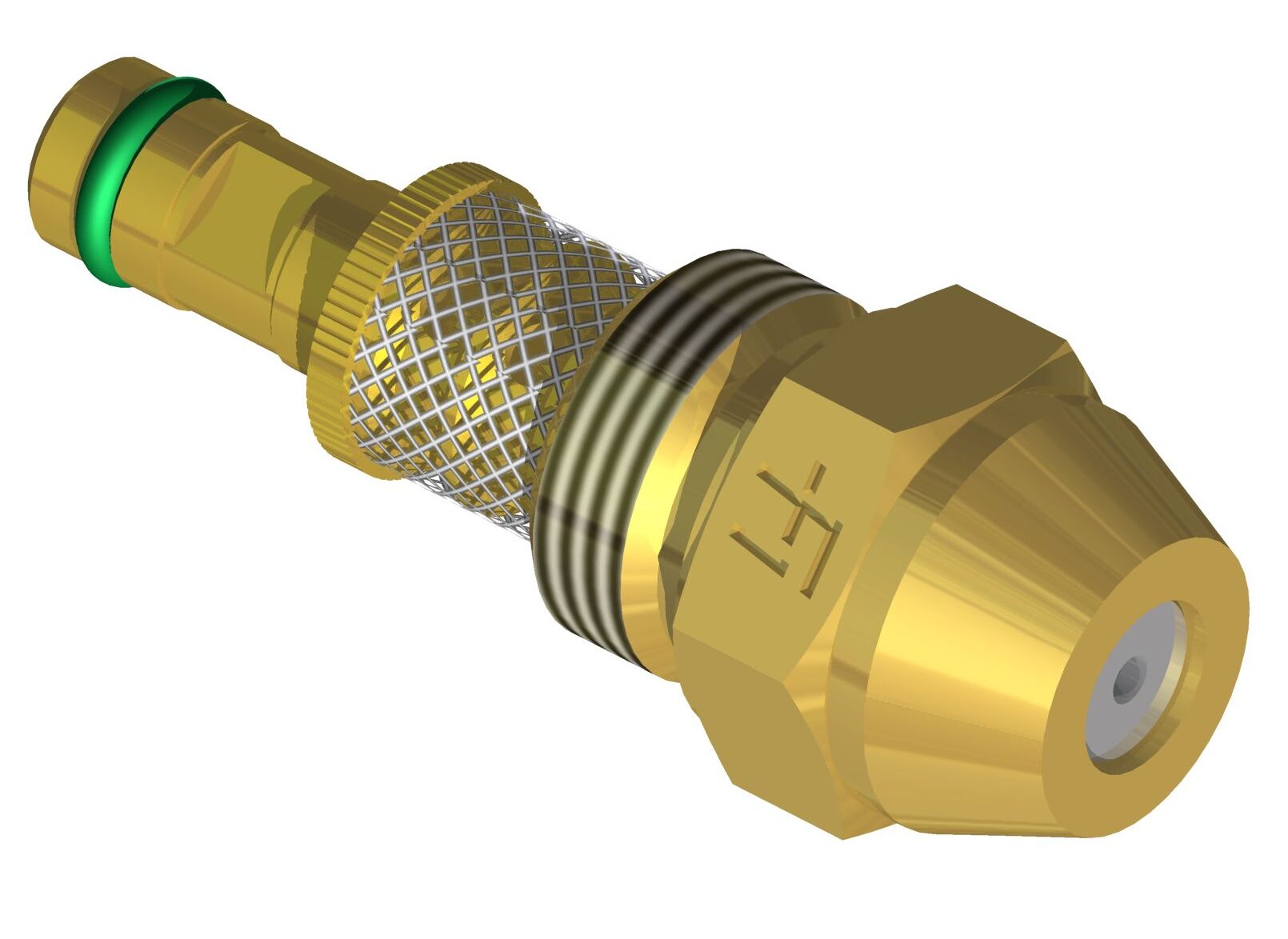

Type 9

KC2

Interchangeable to Bergonzo A3 / A4 Nozzles

KW3

KC2

KW3

Interchangeable to Bergonzo A3 / A4 Nozzles

KW3

Type 9 Details

Flow Rate: 8-250 kg/h

Spray Angle: 30° – 35° – 45° – 50° – 60° – 70° – 80°

Turndown 1:3 – 1:5

Without tip shut-off needle

Type 12

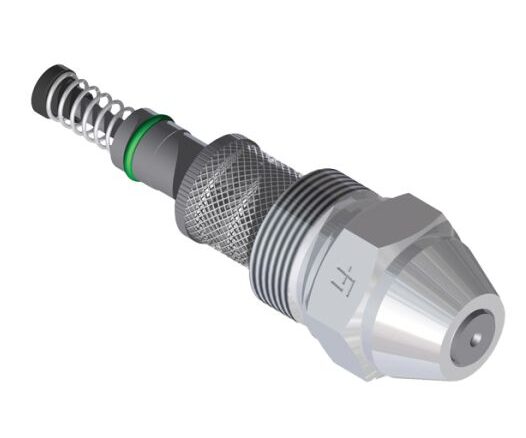

W1

W2

W4-L

Interchangeable to Bergonzo B5 AA Nozzles

W4

WR2

N1

N2

N3-L

Interchangeable to Bergonzo B3 SA Nozzles

N3

N4-L

Interchangeable to Bergonzo B5 SA Nozzles

N4

Type 12 Details

Flow Rate: 20 – 750 kg/h

Spray Angle: 30° – 35° – 45° – 50° – 60° – 70° – 80°

Turndown: 1:3 – 1:5

With or Without tip shut-off needle
