Feed and Pressure Pump Unit
Oil Supply Solutions
Feed and Pressure Pump Units by HP Technik – MOG single and BIK twin pumping units are precision-built feed and pressure modules for varied oil supply needs. They’re built and tested to rigorous standards including TRD 411, TRD 604, and DIN EN 12514-1, ensuring exceptional quality and operational safety. The BIK series offers enhanced versatility with specific designs for light oil (BIKO-L) and heavy fuel oil (BIKO-S), and the ability for user-conversion between 1-pipe and 2-pipe systems.

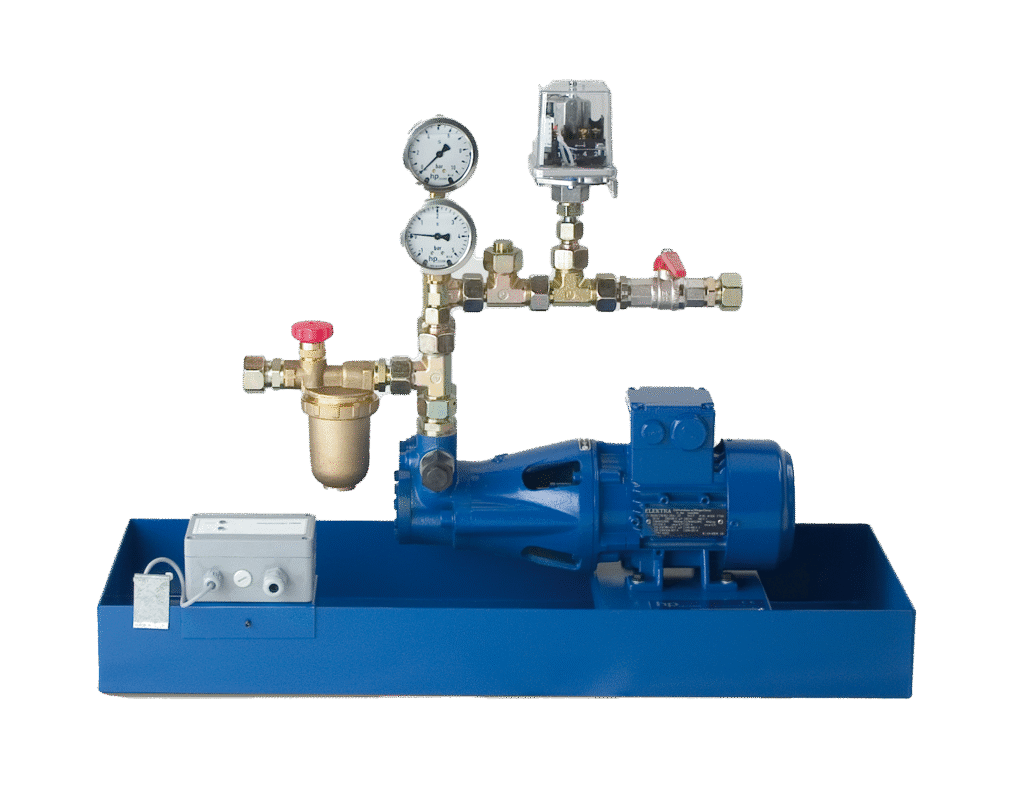

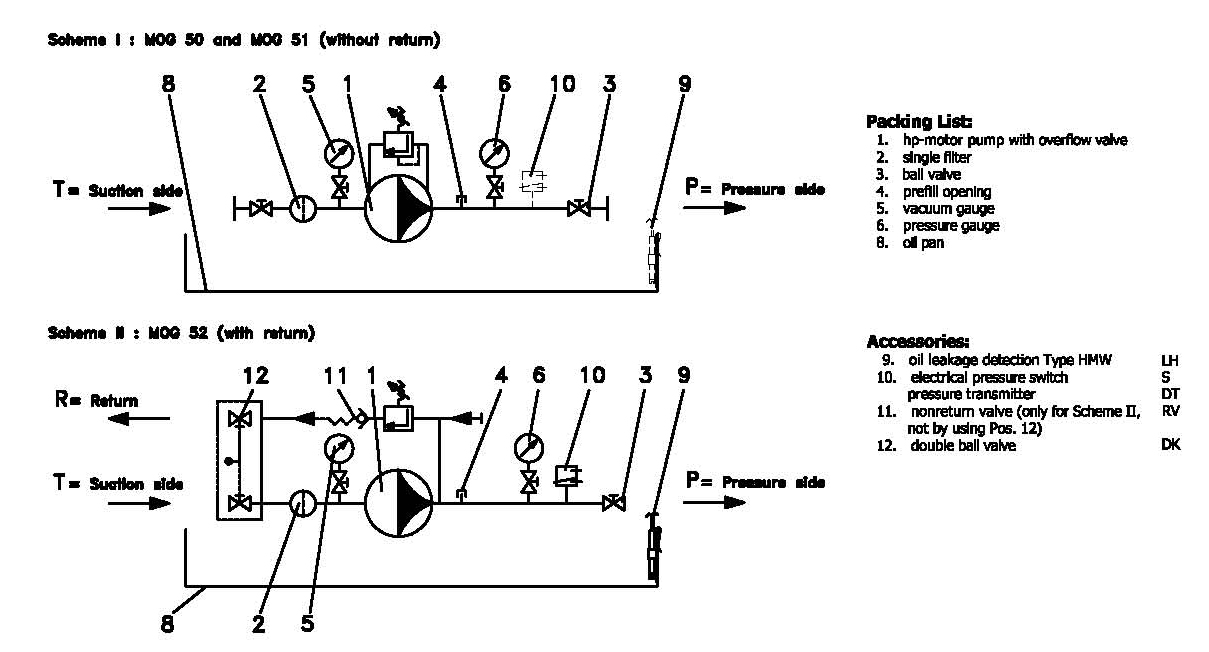

MOG - Single-Pumping Unit
Types of Feed and Pressure Pump Units
MOG - Single-Pumping Unit

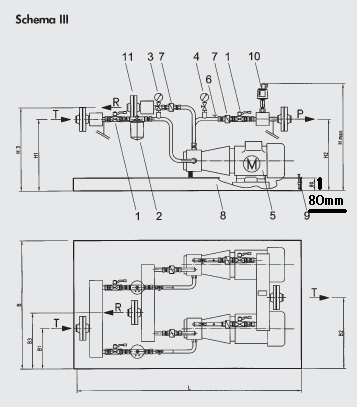

BIK - Twin-Pumping Unit
Applications and Specific Features
- Diverse Fuel Compatibility: Designed for all heating oils, marine fuels, FAME, rapeseed oil, and diesel fuel
- Broad Industrial Application: Suitable as hydraulic, lubricating, and cooling water pumps in machine construction, and as feed pumps for oils, grease, tar, and bitumen in the mineral oil industry
- Marine Use: Functions effectively as lubricating oil and booster pumps for various oils and oil burning systems on ships
- Configurable Pressure Ranges: Available as feed units (up to 9 bar, limited to 6 bar for fuel oil supply), or pressure units (up to 30 or 40 bar for higher requirements).
- Robust Construction: Features pump casings crafted from hydraulic cast iron GJL 250 / GJS 400, with ETG rotors and 16 Mn Cr 5 pinions
- Operational Flexibility: Capable of handling temperatures up to 150°C and a wide range of viscosities, typically up to 80 cSt for light oils and 150 cSt for heavy oils
- Self-Priming & Low Maintenance: These units are self-priming, self-lubricating, quiet-running, and nearly maintenance-free, with pressure-proof and vacuum-tight shaft seals
- Comprehensive Standard & Optional Features: Includes an hp-Motor pump group, single filter, vacuum/pressure gauges, ball valve, and oil pan as standard. Optional accessories include electrical heating ("A"), optical/electrical filter indicators ("E1", "E2"), leakage detection ("LH"), and various valves ("RV", "DK").
- Diverse Fuel Compatibility: Designed for all heating oils, marine fuels, FAME, rapeseed oil, and diesel fuel.
- Versatile Industrial & Marine Applications: Functions as hydraulic, lubricating, and cooling water pumps in machine construction, feed pumps in the mineral oil industry, and lubricating/booster pumps for ships.
- Dual-Design for Oil Types: Available in BIKO-L (light oil) and BIKO-S (heavy fuel oil) variants for specific applications.
- Adaptable Pressure Ranges: Offers configuration as feed units (max 9 bar, 6 bar for fuel oil to DIN EN 12514-1) or pressure units (30 bar or 40 bar).
- Convertible System Design: Easily user-convertible between 1-pipe and 2-pipe systems, providing high adaptability on-site.
- Enhanced Casing Material: Features EN-GJS 400 for the pump casing, ensuring durability and performance.
- Integrated Components & Safety: Standard scope includes an hp-Motor pump group, filter, integrated overflow valve, switchover mechanism, nonreturn valve, oil pan, vacuum gauge, and pressure gauge.
- Advanced Monitoring & Heating Options: Can be equipped with an additional pressure compensation device ("DB"), leakage detection ("LH"), optical/electrical filter indicators ("E1", "E2"), and electrical auxiliary heating ("A") for viscous media.
Useful Documents
MOG - Single-Pumping Unit
BIK - Twin-Pumping Unit
Find out more
For expert advice on selecting the most suitable pump for your specific application, please contact us. Our team is happy to provide guidance and help you choose the right solution for your installation.
