Inpro Fuel Transfer Pumps
Anglo Nordic Is The Proud Distributor of The Inpro Group's Fuel Handling Equipment
Inpro specialises in the design and manufacture of multi-fuel transfer systems, as well as equipment for measuring and controlling the movement of hydrocarbons and other fluids in storage tanks. They also provide solutions for monitoring fuel consumption in burners and emergency generators.
For help selecting the right pump for your application, see the models listed below along with their specific features and uses. If you need further assistance, please complete the pump questionnaire and send it to us here.
Our products
Types of Fuel Transfer Pumps

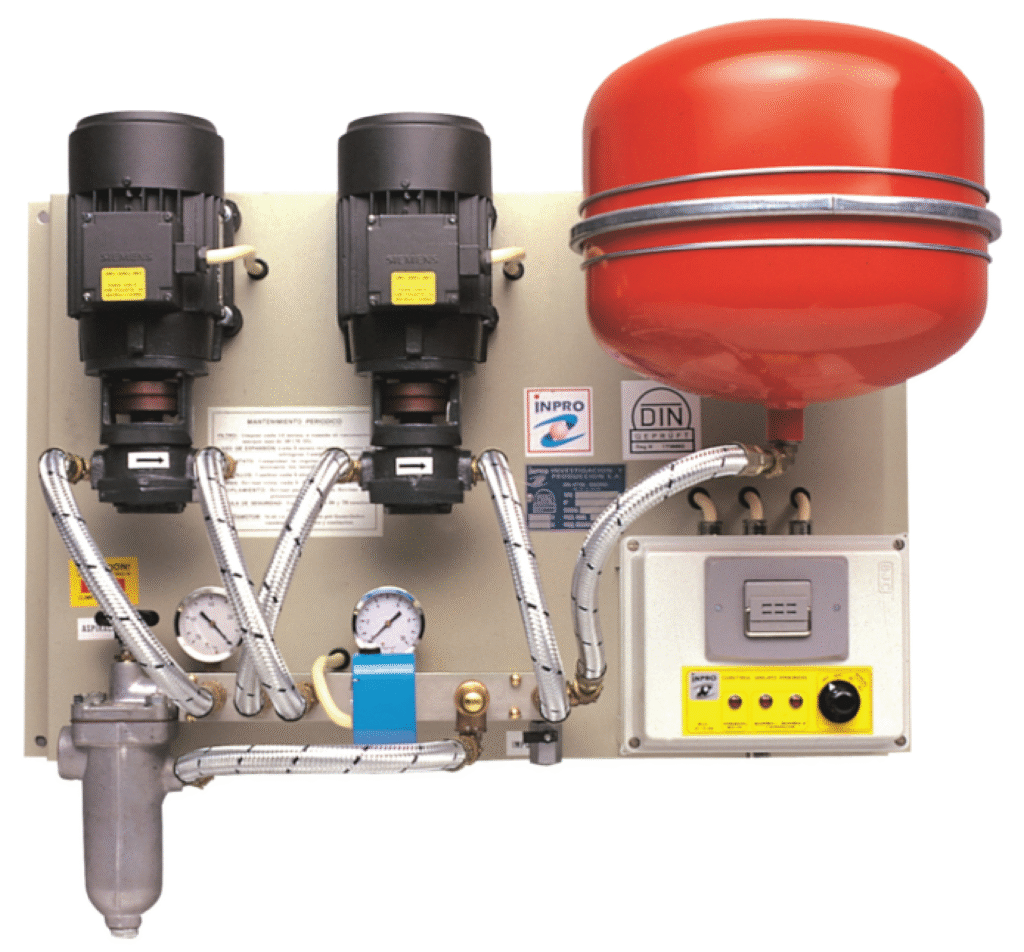

GP Pressure Pump Sets
- Multiple burner, appliances or service tanks supplied with one GP pressure unit.
- Appliances installed at different heights.
- Modulating burners when using the Inpro Oil Burner Inlet Assembly.
- Oil Supply installation using ‘dead leg’ pipework. GP unit does not need external controls.
- GP units operate on an internal pressure switch only pumping fuel when required.
- Pressure regulators may be required at oil inlet to burners/appliances.
- Limited suction lift may require GP unit to be sited near the oil tank.

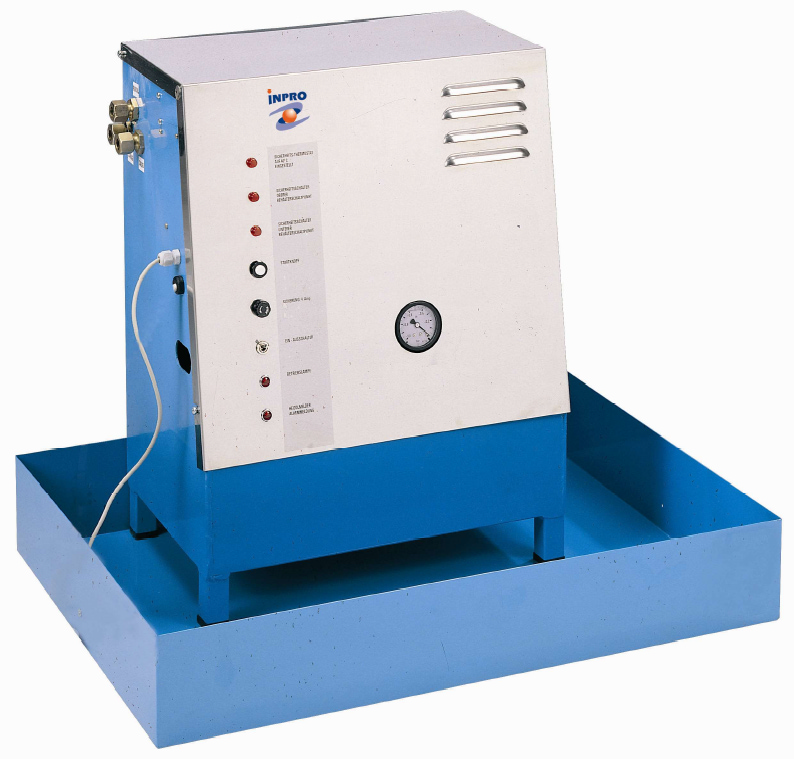

GPS Suction Units
- Oil supply to appliance by gravity feed, GPS unit must be higher than appliance(s).
- Various GPS models available with different sizes of reservoir.
- Standard unit has 2 outlets for 2 appliances, more outlet versions available to special order.
- Suction lift 9m vertical or 200m horizontal.
- Oil supply installations using ‘dead leg’ pipework. GPS unit does not need external controls.
- Anti siphon valve or ‘normally closed’ solenoid valve required at the main oil tank when oil level in tank is above GPS level.
- Special GPS models available with greater reservoir, for acting as power generator reservoir
- Special GPS models available with larger flow, for high output or modulating burners

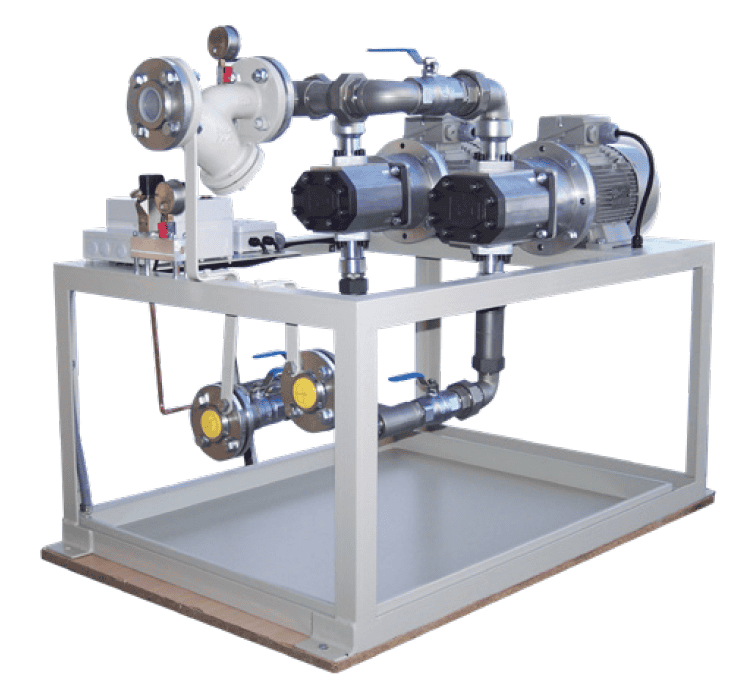

RL Ring System Pressure Units
- Pump for ‘Ring Main’ oil transfer systems.
- Single or multiple appliances at same height or varying height.
- Suitable for high output or modulating burners.
- For use on oil supply installations where a GP ‘dead leg’ system is not practical.
- A back pressure relief valve (overflow valve) is required to maintain adequate pressure in the ‘Ring Main’.
- Special RL units available for aggressive or heated non-standard fuels.
Find out more
For expert advice on selecting the most suitable pump for your specific application, please contact us. Our team is happy to provide guidance and help you choose the right solution for your installation.
