Our Solutions

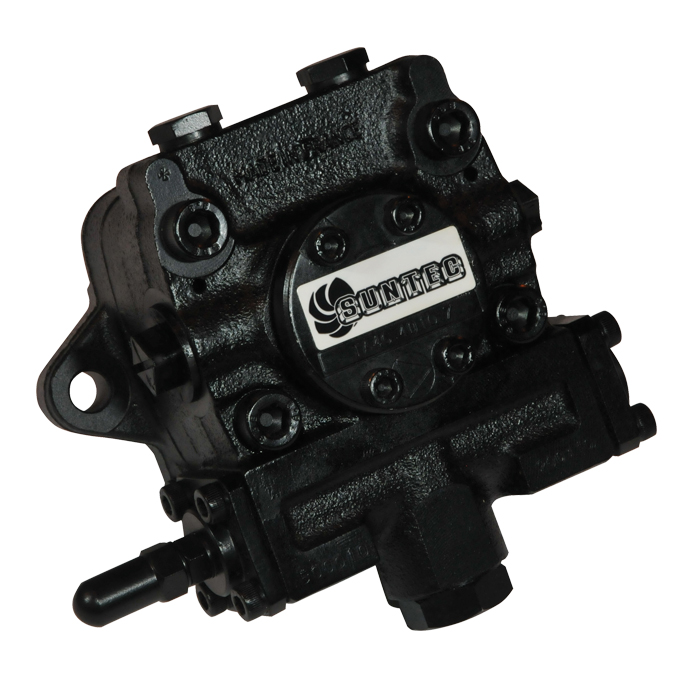

SUNTEC TA Pump Series
TA PUMP SERIES
The SUNTEC TA pump series is engineered for industrial heating systems that operate with light or heavy fuel oils. Designed with a built-in preheater port, it helps ensure reliable performance and easier cold starts in demanding applications. We offer a range of models including:
- Type TA2A 4010-7
- Type TA2C 4010-7
- Type TA3C 4010-7
- Type TA4A 4010-7
- Type TA4C 4010-7
- Type TA5C 4010-7
Applications and Specific Features
- The SUNTEC TA oil pump is specifically designed for industrial heating applications, compatible with light oil, heavy oil, and B100
- It is fitted with a preheater location within the pump body that allows for an electric preheater cartridge (Ø 12 mm, 80-100 W rating) to provide maximum heat transfer to the oil without direct contact, making cold starting easier
- The pump is versatile, able to be configured for either a one-pipe or two-pipe system by either removing or inserting a by-pass plug with a 3/16" Allen key
- It offers two nozzle pressure ranges, either 7-30 bars or 7-40 bars, depending on the model
- The pump's operating principle includes a gear set that draws oil and transfers it to a valve regulating pressure, with bypassed oil returning to the tank in a two-pipe system or back to the gear-set in a one-pipe installation
- It is designed to handle oil with an operating viscosity range of 2 to 75 mm²/s (cSt) and can accommodate oil temperatures within the pump from 0 to 150°C
- The pump features flange mounting and uses cylindrical connection threads according to ISO 228/1, specifically G 1/2 for inlet, return, and nozzle outlet, and G 1/4 for pressure and vacuum gauge ports
Anglo Nordic Transfer Pumps - TA
The ANTP TA oil transfer pump is a self-contained unit designed to deliver a constant, pressurised oil supply for applications such as ring mains, daily service tanks, and high-level burners. Built with reliable SUNTEC TA pumps, it offers quiet performance, easy installation, and compatibility with a wide range of light and heavy oils.
Find out more
For expert advice on selecting the most suitable equipment for your specific application, please contact us. Our team is happy to provide guidance and help you choose the right solution for your installation.
